Availability: | |
---|---|
Quantity: | |
48.3*3.0*6000mm
EK Scaffolding
730890
48.3*3.0
Q235
Zinc-Plated
20.24
Product Description
Product Name | Scaffold steel tubes for tubes and fittings basic scaffolding |
Material | Q345/Q235/Q195 |
Surface treatment | Hot Dip Galvanized/Pre-galvanized |
Color | silver |
Tube diameter | 48.3mm |
Tube thickness | 1.8/2.0/2.75/3.0/3.2/3.75/4.0mm,etc. |
Length | as per request |
Standards | BS 1139, EN74 |
Dimensions,mass and tolerances according to EN39 / BS1139:
Dimensions
The specified outside diameter is 48.3MM and the specified wall thickness is 3.2MM for type 3 and 4.0MM for type 4;
Tolerances on dimensions
The tolerance on specified outside diameter is +/-0.5MM;
The tolerance on out of roundness is included in the diameter tolerance;

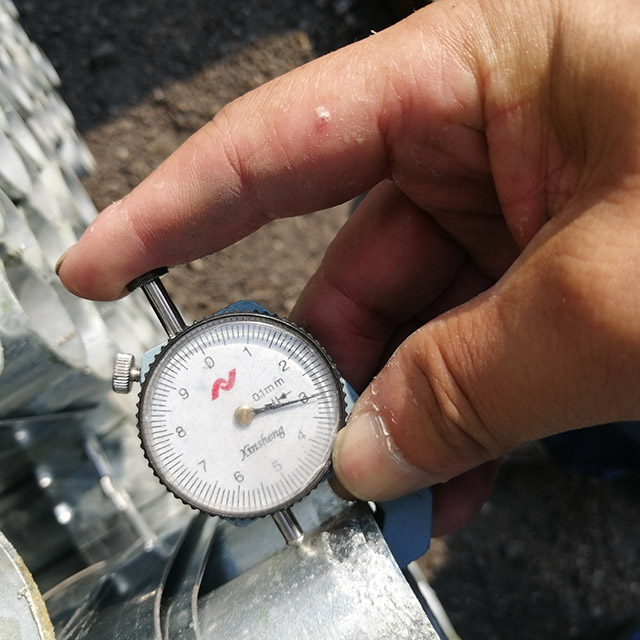

The tolerance on wall thickness is -10%;
The inside diameter of tubes shall allow insertion of agauge of diameter 37.7mm for aminimu length of 200mm;
Mass
The nominal mass per unit length of type 3 tube is 3.56kg/m and for type 4 tube 4.37kg/m
Tolerance on Mass
The mass deviation on a single tube shall notexceed -7.5% of the specified mass;
Product Description
Product Name | Scaffold steel tubes for tubes and fittings basic scaffolding |
Material | Q345/Q235/Q195 |
Surface treatment | Hot Dip Galvanized/Pre-galvanized |
Color | silver |
Tube diameter | 48.3mm |
Tube thickness | 1.8/2.0/2.75/3.0/3.2/3.75/4.0mm,etc. |
Length | as per request |
Standards | BS 1139, EN74 |
Dimensions,mass and tolerances according to EN39 / BS1139:
Dimensions
The specified outside diameter is 48.3MM and the specified wall thickness is 3.2MM for type 3 and 4.0MM for type 4;
Tolerances on dimensions
The tolerance on specified outside diameter is +/-0.5MM;
The tolerance on out of roundness is included in the diameter tolerance;
The tolerance on wall thickness is -10%;
The inside diameter of tubes shall allow insertion of agauge of diameter 37.7mm for aminimu length of 200mm;
Mass
The nominal mass per unit length of type 3 tube is 3.56kg/m and for type 4 tube 4.37kg/m
Tolerance on Mass
The mass deviation on a single tube shall notexceed -7.5% of the specified mass;
