Scaffolding Steel Telescopic Prop
EK
730890000
57/48.3mm, 60.3/48.3mm
Q235
Zinc-Plated
12.6KG
Supplying 3.5M 4.0M Galvanized Or Painted Scaffolding Adjustable Steel Telescopic Props
Product Description
Features of steel Prop:
1. Scaffolding adjustable steel props consists of outer tube, inner tube, prop nut, top plate and base plate,5 components.
2.Adjustable steel props is fast to build up,which can save 60% time and manpower than traditional scaffoldings.
3.Workers can handle it easily due to the simple structure.
4. Scaffolding adjustable Steel Props is an ideal and cost-effective product to support concrete,temporary formwork,slabs and beams.
5. Scaffolding adjustable Steel Props is very easy to transport and stock. The high protected painted surface means it is not easy to rust.
6. The heavy duty type of steel props that can load more than 1 ton for each piece steel prop.
Type | 3.5M Telescopic Prop |
Tube Size | Inner Tube 48.3mm, Outer Tube 60mm |
Thickness | 3mm or per design |
Plate size | 120mmx120mmx4mm (140x140mm, 150x150mm, thickness 3-8mm or per design) |
Adjustable Length | 2572-3872mm (1082-1782mm, 1842-3142mm, 1980-3350mm or per design) |
Weight | 12.6KG |
Main Material | Q235 or Q345 |
Type | Heavy duty, Light Duty |
Color | Blue, yellow, red etc. or as requested |
Surface treatment | Hot dip galvanized, pre-galvanized, Painted, galvanized, powder coated |
Advantages | Competitive price, High-quality products, 24-hour after-sales service |
Port | Nanjing/XINGANG |
Application | Scaffolding and formwork |
Currency | USD, RMB |
Payment | L/C, T/T, 30% in advance |
Package | Steel Pallet |
Adjustable Height: 2572-3872mm
Outer Tube | Inner Tuber | Base Plate | Plug Pin | Nut | Weight (KG) |
57*2*1655mm | 48.3*2*2485mm | 120*120*4mm | 0.6mm | 0.8mm | 12.60 |
60.3*3*1655mm | 48.3*3*2485mm | 150*150*6mm | 0.6mm | 0.8mm | 18.86 |
76*2.5*1655mm | 63.5*3.2*2485mm | 150x150x8mm | 0.6mm | 2.0mm | 24.75 |
Adjustable Height: 1082-1782mm
Outer Tube | Inner Tuber | Base Plate | Plug Pin | Nut | Weight (KG) |
57*2*995mm | 48.3*2*1055mm | 120*120*4mm | 0.6mm | 0.8mm | 7.41 |
60.3*3*995mm | 48.3*3*1055mm | 150*150*6mm | 0.6mm | 0.8mm | 11.27 |
76*2.5*995mm | 63.5*3.2*1055mm | 150x150x8mm | 0.6mm | 2.0mm | 14.95 |
Technical Details
Product Image
Other Scaffolding Materials we common export

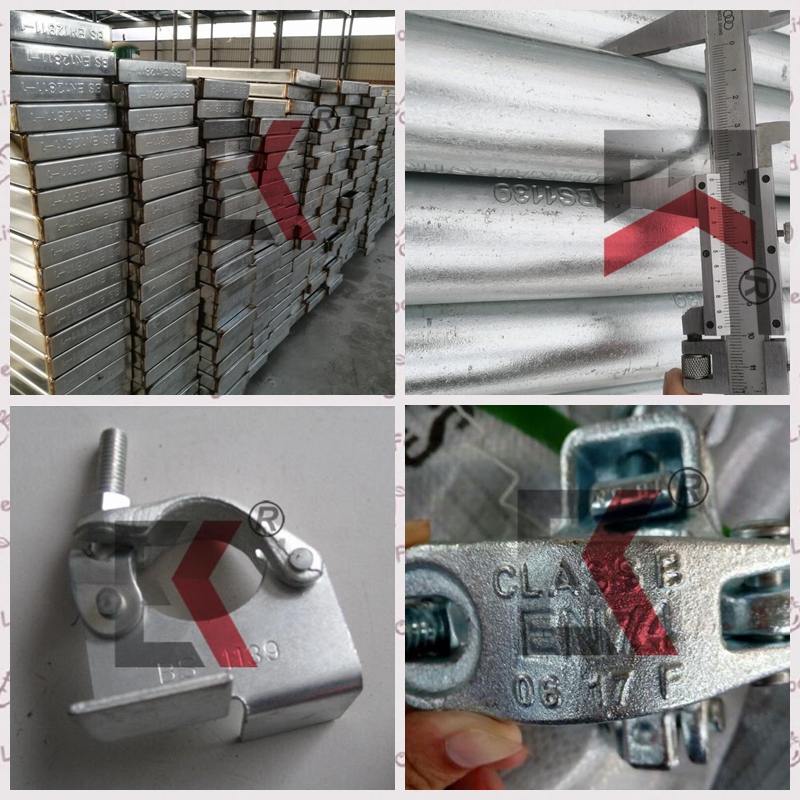

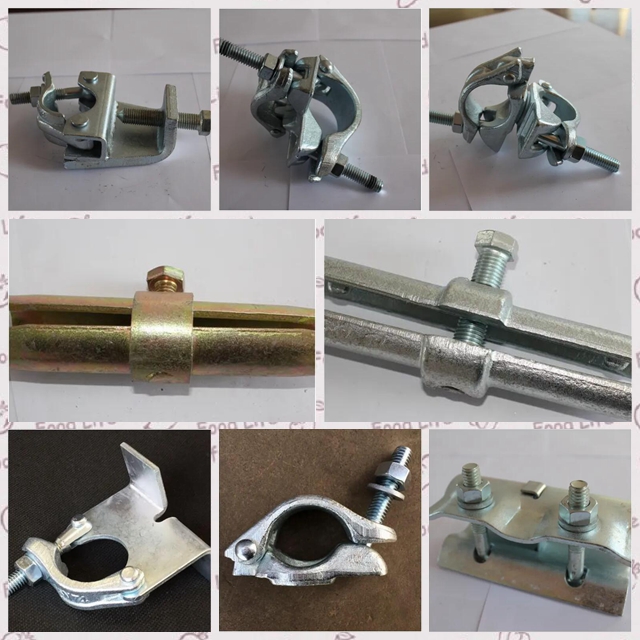

1) Scaffolding Fittings and Clamps
2) British Standard Stamp Markings on Goods per Requests
3) Galvanized Steel Walk Boards or Aluminum Plank (with hook or not)

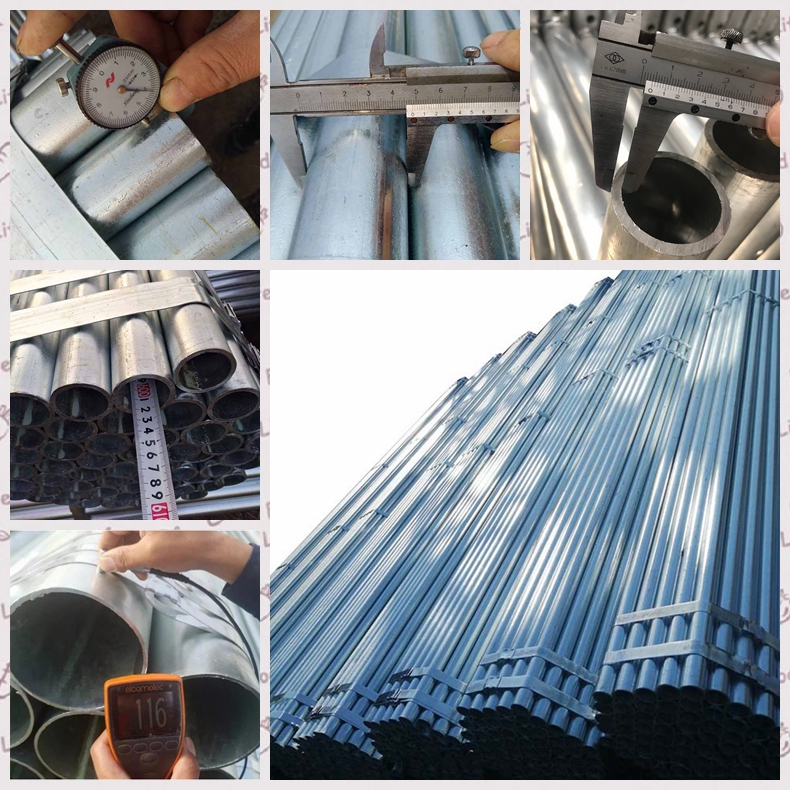

4) Galvanized Scaffolding Steel Tubes
5) Others
