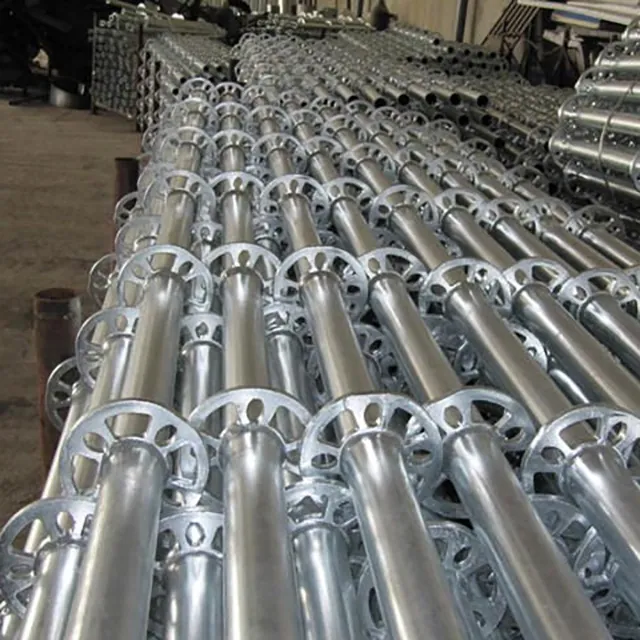

Ringlock Scaffolding System Standard
EK
730890000
48.3x3.2mm
Q235
Hot-Dip Galvanized
10.45
HDG Standard for Ringlock System
Production Description
Type | HDG Ringlock Scaffolding Standard |
Length | 2000mm(6'7") |
Weight | 10.45kg |
Main Material | Q235 or Q345 |
Surface treatment | Painted, galvanized, HDG, powder coated |
Advantages | Competitive price, High-quality products, 24-hour after-sales service |
Port | Nanjing/XINGANG |
Currency | USD, RMB |
Payment | L/C, T/T, 30% in advance |
Package | Steel Pallet or Customized |
Weight & Length
Code | Description | Length (mm) | Weight (kg) |
EK-RLS050 | Standard (Vertical) with Hot Dip Galvanized steel tube 48.3x3.2mm | 500 (1’8”) | 3.19 |
EK-RLS100 | 1000 (3’3”) | 5.66 | |
EK-RLS150 | 1500 (4’11”) | 8.07 | |
EK-RLS200 | 2000 (6’7”) | 10.45 | |
EK-RLS250 | 2500 (8’2”) | 12.87 | |
EK-RLS300 | 3000 (9’10”) | 15.29 | |
EK-RLS400 | 4000 (13’1”) | 20.11 |
Ringlock Scaffolding Ultimate Guide 2022
Ringlock is a type of modular scaffolding. Modular scaffolding is a system scaffold with prefabricated interlock components without the need for scaffold couplers and fittings to fix. Ringlock scaffolding systems include prefabricated parts of ringlock standard, ledgers, braces, etc, they can interlock each other, and no need for any scaffolding couplers in fixing.
Ringlock system is a group of ringlock scaffolding parts and components, including ringlock standards, ledgers, braces, decks, etc, used to form scaffold frames and towers for construction and shoring.
In the ringlock scaffolding, wedge pins are fixed on the ring lock ledger and brace heads by rivets. It is used to fix ring system horizontals and braces between ringlock standards.
More than ringlock systems, cuplock system scaffolding, kwikstage system scaffold, quick lock scaffold, crab shoring systems, and frame scaffolding are modular scaffolds too.
