| Quantity: | |
|---|---|
Base Plate
EK
73084000
125/250mm*125/250mm/381/762mm or Customized
Q235
Zinc-Plated
2-30kg
Scaffolding Extension Base Plate Screw Jack
1.Product Description

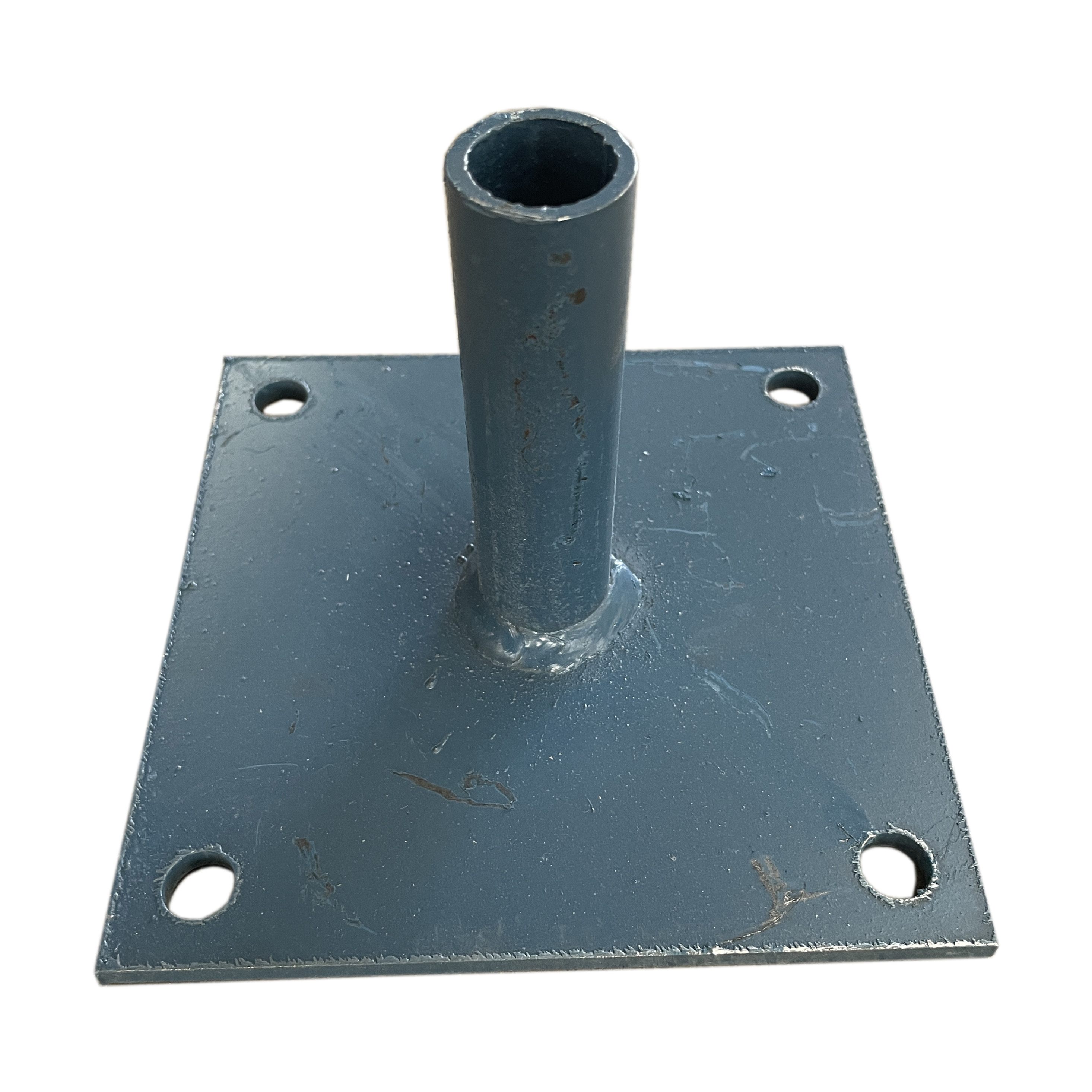

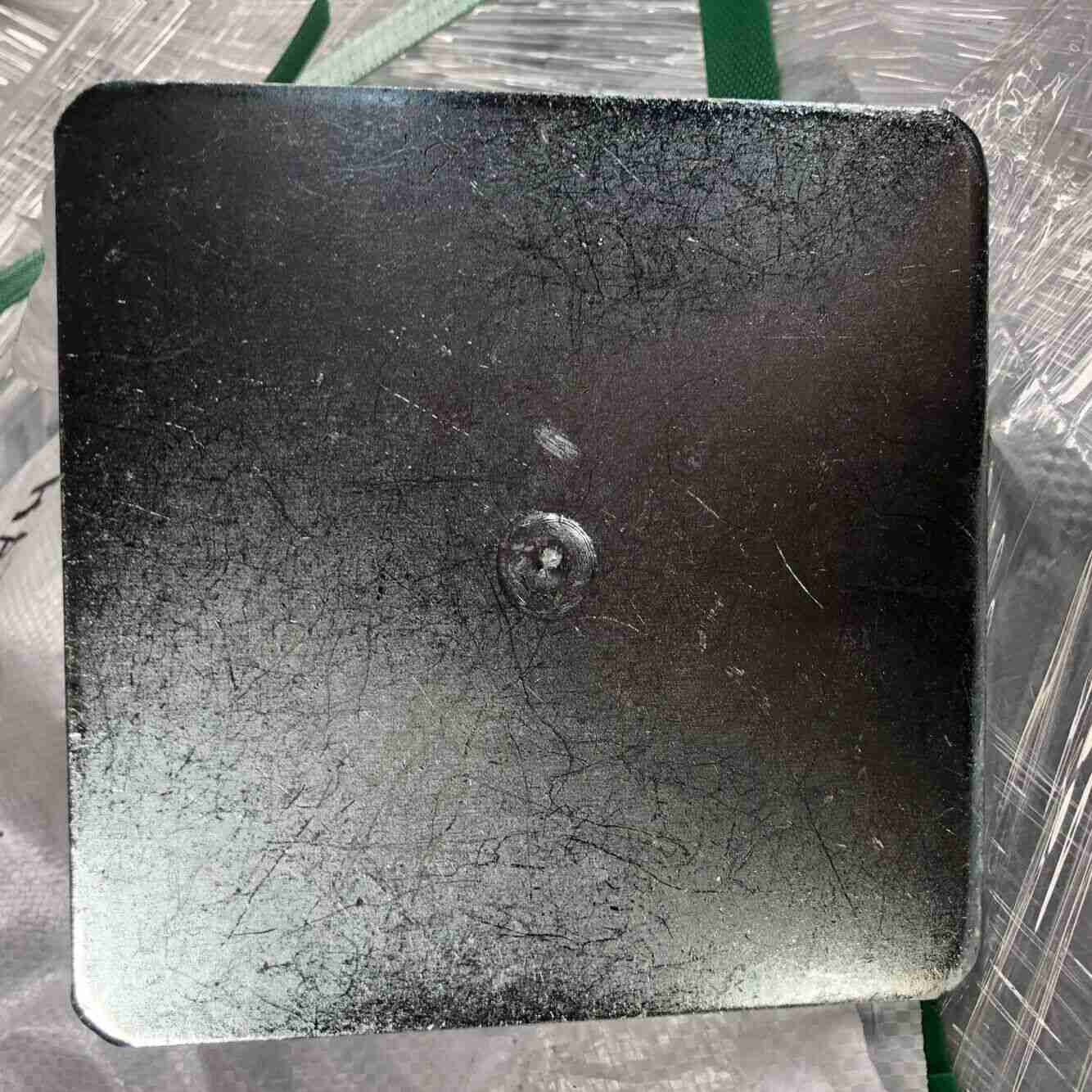

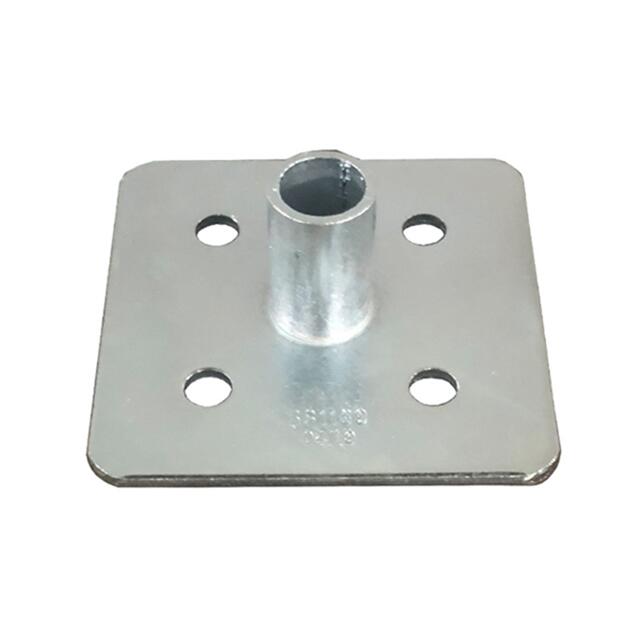

Scaffolding base plate is a type of footplated for scaffold system and tube&clamp scaffolding. The spigot for scaffolding base plate can be made from round rod or scaffolding hollow tube. The size of scaffolding base plate can be divided into 50mm, 110mm, 120mm, 140mm, 150mm and so on according to EN74 / BS1139 standard and can customize according to your requirements. Depending on the usage and size of spigot, scaffolding base plate can be in insert type and socket type.
High Load Carrying Capacity Scaffolding Base Plate | ||||
Name | Base Plate Type | Scaffolding Base Plate Size | Scaffolding Base Plate Weight (KG) | |
Rod / Tube (MM) | Base Plate (MM) | |||
Scaffolding Base Plate | Rod | 12*80 | 120*120*5 | 0.62 |
Scaffolding Base Plate | Rod | 12*100 | 120*120*5 | 0.63 |
Scaffolding Base Plate | Rod | 12*80 | 120*120*6 | 0.73 |
Scaffolding Base Plate | Rod | 12*100 | 120*120*6 | 0.74 |
Scaffolding Base Plate | Rod | 12*80 | 150*150*5 | 0.94 |
Scaffolding Base Plate | Rod | 12*100 | 150*150*5 | 0.95 |
Scaffolding Base Plate | Rod | 12*80 | 150*150*6 | 1.11 |
Scaffolding Base Plate | Rod | 12*100 | 150*150*6 | 1.13 |
Scaffolding Base Plate | Tube | 35*3.0*50 | 120*120*5 | 0.67 |
Scaffolding Base Plate | Tube | 36*3.0*50 | 120*120*5 | 0.69 |
Scaffolding Base Plate | Tube | 38*4.0*50 | 120*120*6 | 0.85 |
Scaffolding Base Plate | Tube | 38*4.0*100 | 120*120*6 | 1.02 |
Scaffolding Base Plate | Tube | 35*3.0*50 | 150*150*5 | 1.01 |
Scaffolding Base Plate | Tube | 36*3.0*50 | 150*150*5 | 1.02 |
Scaffolding Base Plate | Tube | 38*4.0*50 | 150*150*6 | 1.23 |
Scaffolding Base Plate | Tube | 38*4.0*100 | 150*150*6 | 1.40 |
Specifications can be customized according to requirements | ||||
2.Product Advantage
A. High quality materials, higher quality.
Material--The product material is Q235 or Q345 carbon steel which is higher than the standard as the raw material.
Quality assurance, not easy to crush deformation.
B. Advanced technology, better performance
Products using advanced technology, avoid the production malpractice of old craft, causes the product the anti-deformation and the anti-stretching performance to be stronger, more fits the scaffolding.
C. Anti-rust treatment, longer service life.
After passivation and surface galvanized anti-rust treatment, it is corrosion resistance is better than the ordinary tubes, longer service life.
D. Standard production, more secure.
According to the professional design and advanced technology, all products are manufactured in strict accordance with EN74 and BS1139 standards, quality guarantee, ensure construction safety and personnel safety.
